Description.

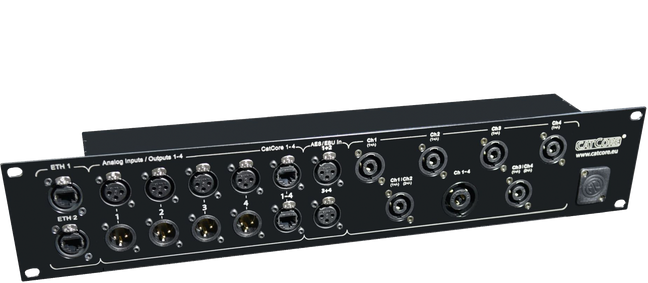

2U Panel for 4-channel amps featuring 6x NL4, 1x NL8, 2x Ethernet, 4x NF + CatCore, 2x AES/EBU. Perfect fit for quad-channel-amps such as Powersoft X4, Outline XO4, D&B D20 and D80, CAMCO Q-POWER 14, Fohhn D4 or any other four channel amp.
All purpose patch panel for 4-channel audio amplifiers and amp racks. Outputs as SpeakON in NL2, NL4 and NL8 parallel connections. Audio inputs via XLR and CatCore. 2 x Ethercon throughput, 2x AES/EBU via XLR. Speaker inputs via NL4 (2-Channels each). Isolated feedthrough for mains cable (M25 cable gland).
Low profile design, all connections on backside as sockets. Therefore usable with any amp, and at any position within your rack. All internal wiring on thick-layer PCBs with 4mm² cross section for minimum losses.
Powder coated aluminium 19" housing / 2U shallow design allows even positioning behind devices within rack. Laser engraving for permanent marking.
Pinout CatCore-ports according to standard AES72 / 3E.
