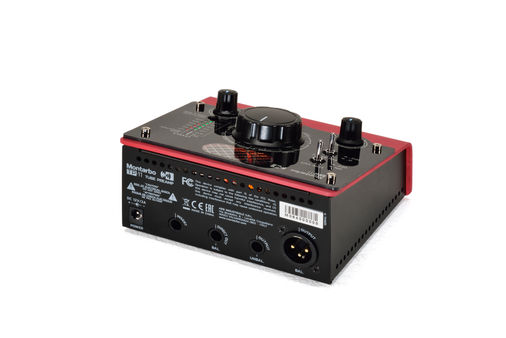

Montarbo TP-11
TP-Series
Description.
The Montarbo TP-11 tube preamplifier brings an incredibly versatile and creative tool for Studio and Live applications in the palm of your hand.
Its compact dimensions, low weight and rugged construction make TP-11 ideal for multiple applications, including mobile uses.
The tube, which lies at the centre of an entirely analogue signal pathway, is controlled by a rotary encoder that offers a choice of 16 different presets, providing the same amount of tonal colours for microphones and instruments.
Some of the presets trigger a carefully tuned sound compressor, able to provide even more variations and different levels of dynamic control to your records.
The on-board I/O allow the unit to be connected to other professional sound equipment.
Key Features.
Input Impedance - 2 kOhm (XLR) / 840 kOhm (TS jack)
Output impedance - 600 Ohm (XRL) / 300 Ohm (TS jack)
Maximum Input Level - +15 dBu (XLR) / +22 dBu (TS)
Maximum Output Level - +28 dBu (XLR) / +22 dBu (TS)
CMRR - >75dB (typical @ 1kHz)
Frequency response - 10 Hz - 30 kHz ( 6dB)
Dynamic Range - >100dB (typical)
S/N Ratio - 90 dBu
Inputs
Combo (XLR+jack)
Insert
Outputs
Balanced XLR
Unbalanced jack
Direct out jack
Controls
Input level knob
Output level knob
Preset selector
Switch buttons
Low cut switch
Polarity switch
+48V switch
Line/Mic input switch
Low cut Filter - -12 dB@50 Hz
