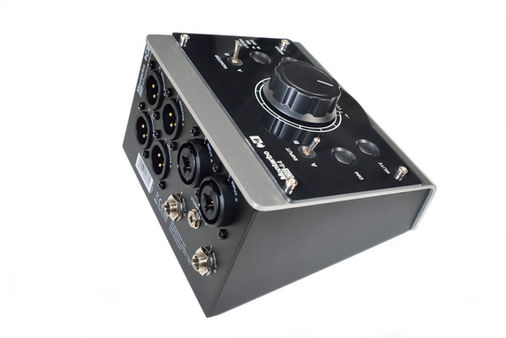

Montarbo CR-44
CR-Series
Description.
Absolute must-have for producers and sound engineers, CR 44 is the passive controller that allows the management of two pairs of monitors, for professional and home studio reference listening.
A small, compact and complete audio control room, CR-44 features two pairs of outputs on balanced XLR connectors (monitor A, monitor B), one pair of inputs on balanced XLR connectors (Input A), and on balanced TRS connectors (Input B) or 3.5 mm stereo mini-jack.
Passive volume control ensures transparent attenuation of the audio signal. On-board controls enable input and output selection, volume, muting, 20 dB attenuation, MONO function, and, last but not least, the Side Listen function, which allows selective listening to the stereo mix in its most "lateral" spatial zones.
Key Features.
Type - Passive controller for monitor
Frequency response - 0dBu Input: ±1dB 10Hz-30kHz
Distortion - 0dBu Input@1kHz: 0.0005%
Crosstalk - 0dBu Input@1kHz: -115dB
Signal-noise ratio - A-weighted: -115dB
Dimensions W x H x D - 140 mm x 79.5 mm x 128 mm
Weight - 670g
Input - A (L,R) –balanced XLRs B: (L, R) balanced TRSs or 3.5 mm Stereo mini-jacks
Output - MONITOR A (L, R) balanced XLRs MONITOR B (L,R) balanced XLRs
Controls
Input selectors (A,B)
monitors (A,B)
Volume
DIM
MUTE
SIDE LISTEN
MONO
