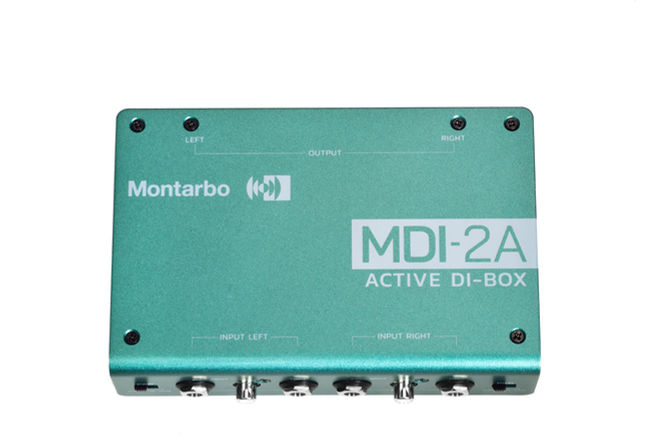

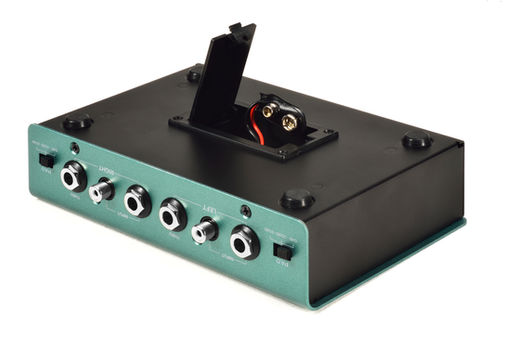

Montarbo MDI-2A
MDI-Series
Description.
The D.I. Box MDI-2 is available in two versions: active (MDI-2A powered by 9V battery) and passive (MDI-2P).
DI boxes are essential to optimise the signal management of high impedance instruments such as keyboards, guitars and electric basses. A crucial partner in the studio and on stage, each MDI-2 provides for signal balancing and impedance matching of any audio signal.
The device is equipped with TRS or RCA L/R unbalanced Inputs, XLR balanced L/R OUT, as well as an attenuation selector [0 dB -20 dB -30 dB] for both left and right channel input signal.
It is also possible to take repetitions of the input signals through the convenient THRU connectors on the front panel, while the Ground button eliminates possible hums on both output signals.
Key Features.
Type - Active D.I. Box
Channels - 2
Enclosure - Metal Housing
Dimensions W x H x D - 172mm x 42.5mm x 112mm
Weight - 752g
Input - 2x 6.3mm jack 2x RCA
Output - 2x XLR
Max Input Level - +1 3dBu/+4 dBu
Input Impedance - 180kOhm @PAD= 0 dB
Total Harmonic Distorsion - <0.002%@1 kHz
Controls
1x Ground lift switch
1x Battery ON/OFF switch
