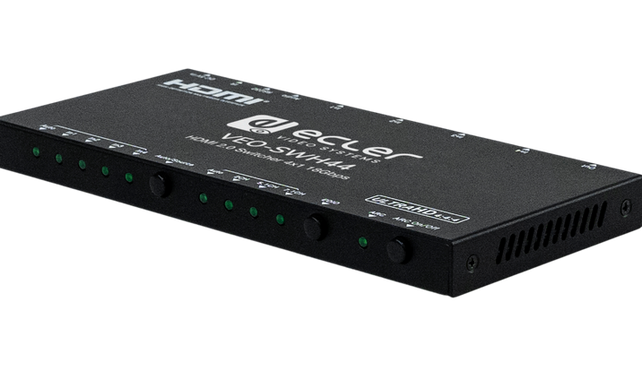

Ecler VEO-SWH44
4x1 HDMI 2.0 SWITCHER with audio De-embedder
Key Features.
4x1 Ultra High Definition sources selector compliant with HDMI 2.0a standards
Video formats up to 4Kx2K(4096x2160@60Hz YUV 4:4:4) and all HDMI 3D video formats and all HDMI
Supports HDR and 3D contents
HDCP2.2/1.4 Compliant
Supports 36 bit Deep Color
Smart EDID management (Auto/2CH/5.1CH/7.1CH selectable)
PCM, Dolby TrueHD, DTS-HD Master Audio up to 7.1CH
Supports Audio Return Channel (ARC)
Digital and analog audio output
RS-232 Control
Supports up to 18Gbps video data rate
Retail // Leisure // Sports & Wellness // Hospitality
Description.
VEO-SWH44 is a 4x1 HDMI switcher for high dynamic range (HDR) formats. It is the ideal solution for applications requiring 4K/UHD and HDR sources and displays. VEO-SWH44 includes audio de-embedding features and audio EDID management. The HDMI selection could be automatic (sense selection) and manual (frontal panel, remote control or serial commands). The controls include ARC mute and LED indications of the selected sources and settings.
