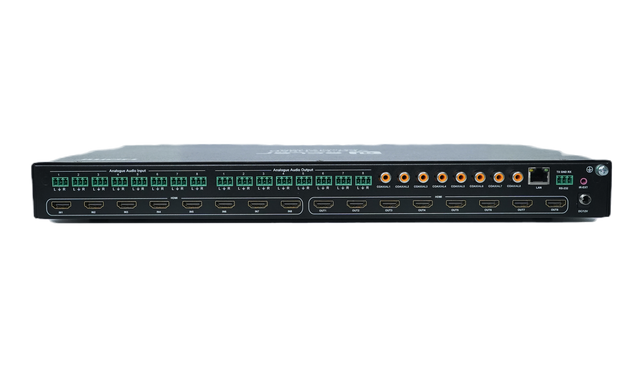

Ecler VEO-MXH88D
Key Features.
8×8 HDMI 2.0 Matrix Switching – Features eight HDMI 2.0 inputs and eight HDMI 2.0 outputs, allowing multiple sources to be routed independently to different displays in professional AV installations.
4K UHD and HDR Video Support – Supports resolutions up to 4K at 60 Hz with 4:4:4 chroma sampling and 8-bit colour, plus HDR at 4K/60 Hz with 4:2:0 chroma sampling and 10-bit colour.
8 Configurable Presets – Store and recall up to eight routing configurations for quick, convenient operation.
Advanced Audio Format Compatibility – Supports Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS audio formats for integration with compatible sound systems.
Description.
Retail // Education // Corporate // Sports & Wellness // Hospitality
The Ecler VEO-MXH88D is a professional 8×8 HDMI 2.0 matrix switcher designed for commercial AV installations requiring flexible 4K/UHD video and audio distribution. Supporting resolutions up to 4K at 60 Hz with 4:4:4 chroma sampling, it allows up to eight HDMI sources to be routed to eight displays, making it well suited to conference rooms, meeting spaces, education, hospitality and other professional AV environments.
For flexible audio integration, the VEO-MXH88D features eight analogue audio inputs and 16 analogue and digital audio de-embedding outputs, making it easier to incorporate HDMI sources into external sound systems. Built-in EDID management helps maintain compatibility between connected sources and displays, while HDCP 2.2 and 1.4 compliance supports integration with a wide range of HDMI equipment.
Configuration and operation are straightforward, thanks to the front-panel LCD display and integrated web-based GUI. The matrix can be controlled using the front-panel selection buttons, serial commands, TCP/IP or infrared (IR), offering flexible options for both standalone operation and integration into wider AV control systems. Support for up to eight presets also allows frequently used routing configurations to be saved and recalled quickly.
Combining 8×8 HDMI switching, 4K/60 video support, versatile audio de-embedding and flexible control options, the Ecler VEO-MXH88D HDMI matrix is a practical solution for professional AV systems that need reliable signal routing and straightforward day-to-day management.
