Ecler WPaH-AT100
Key Features.
70/100V Line Attenuator: Allows local volume adjustment in 70V and 100V distributed loudspeaker systems, making it suitable for commercial sound and public address installations.
100W Maximum Power: Supports loudspeaker lines with a maximum power of 100W, ideal for larger distributed audio zones.
24V DC Priority Relay: Integrated priority relay bypasses the volume control when activated, allowing priority announcements or emergency messages to be heard at the required level.
Convenient Wall-Mounted Control: Provides straightforward local volume adjustment for background music and PA systems in retail, hospitality, education, corporate and leisure environments.
Description.
Retail // Education Corporate // Sports & Wellness // Hospitality

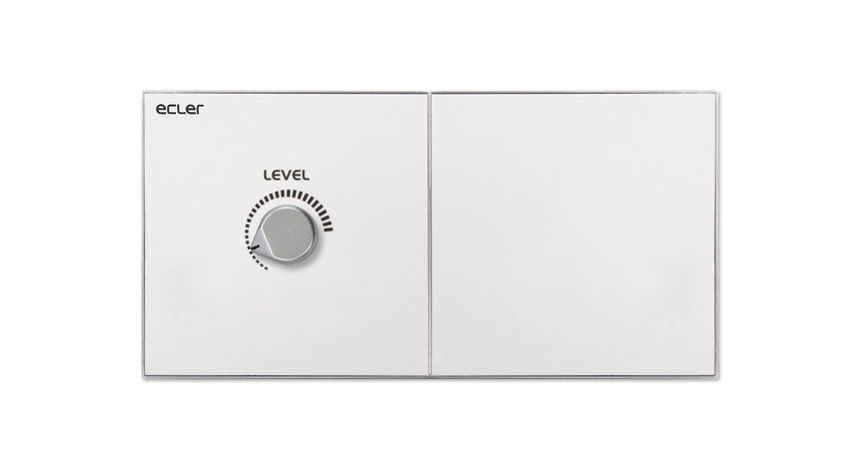

The Ecler WPaH-AT100 is a 70/100V line attenuator designed for commercial sound systems and public address (PA) installations, providing convenient volume control for high-impedance loudspeaker lines. With a maximum output power of 100W, it is well suited to background music and voice announcement systems in larger commercial spaces.
The integrated 24 V DC priority relay allows priority audio signals, such as emergency or paging announcements, to override background music, making the WPaH-AT100 a practical choice for installations where clear, prioritised communication is essential.

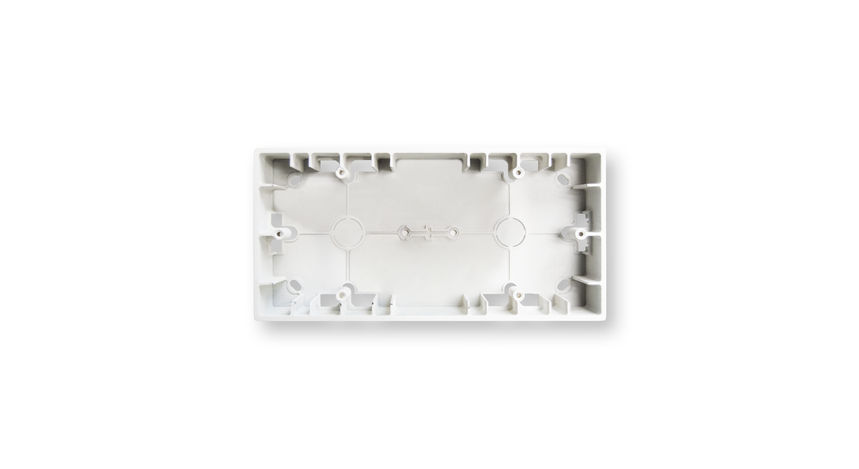

Part of Ecler's WPa series of remote control wall panels, the WPaH-AT100 combines reliable functionality with a modern, discreet design developed in collaboration with Italdesign Giugiaro. A surface-mount installation box measuring 86 x 86 x 38mm is included for straightforward installation in commercial audio systems.
