Ecler WPaBT
Bluetooth® Wall Panel Receiver
Key Features.
Bluetooth® receiver in WPa wall panel format (standard UE).
Bluetooth® class 1 (range 25m), version V5.0. A2DP profile.
Balanced stereo Euroblock output dual-mono configurable.
PAIR button with blue LED activity indicator. This can be turned off in dark rooms so as not to disturb.
Easy device name configuration, PIN, stereo/mono output and other adjustments via the Ecler Bluetooth® Manager application for Windows devices.
External 24VDC power supply (WP24-PSU, optional), via terminal strip or via eMCONTROL1 power supply bus
GPO: to indicate that an A2DP audio connection is active (automatic priority management)
USB-C configuration port: not visible, behind the front cover. Easily accessed by removing only the front cover; it is not necessary to remove the device from the wall. USB-C cable not included
Compatible with round electrical boxes that are 60mm in diameter.

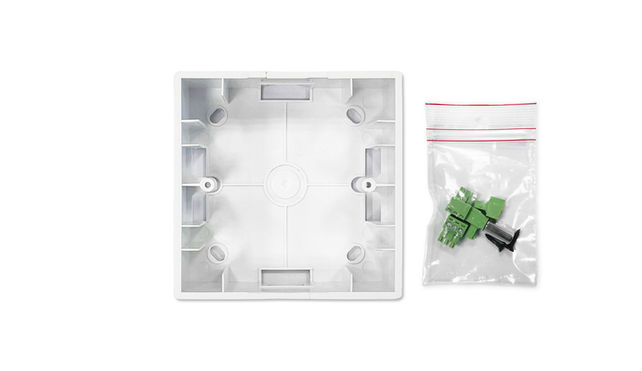

Surface mounting box included
Compatible with WPa2FMBOX and WPa2SMBOX mounting boxes
It can be combined with an eMCONTROL1 to work as a remote audio input for HUB Series digital zoner
Retail // Education // Corporate // Sports & Wellness // Hospitality
Description.
WPaBT is a Class 1 Bluetooth® receiver with balanced stereo Euroblock output. Surface-mount installation box included (WxHxD = 86 x 86 x 38mm). WPa is a series of remote control wall panels for systems and interconnecting audio signals, with a modern, elegant, discrete aesthetic, designed in collaboration with Italdesign Giugiaro.
