Ecler eMPAGE
16-zone | 20-key | e-ink display | RJ45
Key Features.
20 mechanical keys with integrated LED status indicator (paging zone selection management)
1 mechanical key with adjacent LED indicator (message activation, PAGE key)
Electronic ink display (shows paging zone names)
Gooseneck microphone, with standard XLR connector
Management of up to 16 paging zones
RJ45 connector for single CAT5 or higher cabling (point-to-point), including power, audio output signal (picked up by the microphone) and digital control bus between the HUB unit and the eMPAGE station
Connector for backup power supply (optional)
Two eMPAGE units, with different or equal priority levels, can work simultaneously on the same HUB zoner
Programming of paging station(s) functionality from the web application embedded in the HUB: enabled paging zones, chime melodies, priorities, programmable keys, etc.
Retail // Corporate // Hospitality
Description.

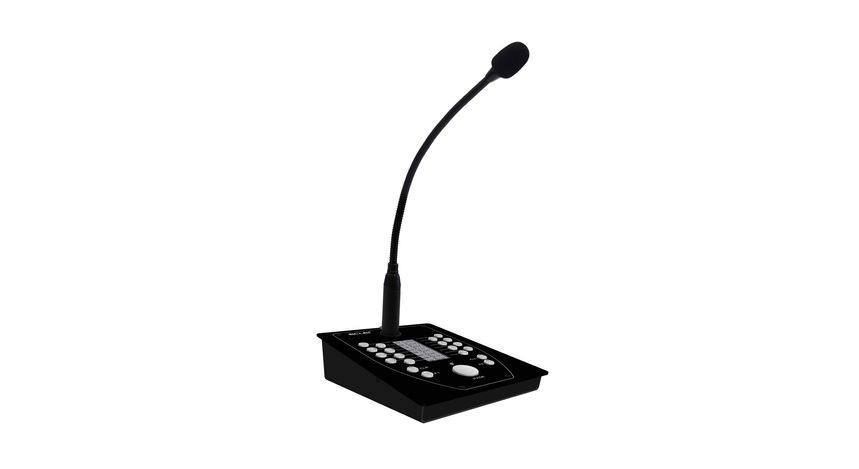

eMPAGE is a digital paging station (MPAGE16's evolution), compatible with HUB, MIMO88, MIMO88SG and MIMO1212SG digital matrixes. Includes: a gooseneck cardioid microphone (removable); 16 zone-selection keys; ALL, CLEAR and PAGE keys; 2 programmable keys, F1 & F2, for zone-group selection. Text labelling for destination areas by means of programmable electronic ink display.
