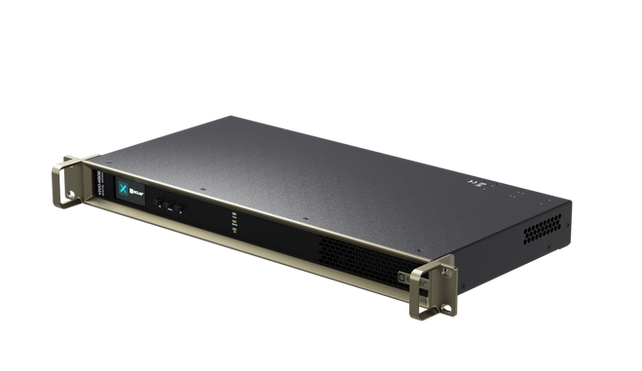

Ecler VIVO-X8D8
Key Features.
EclerPLEX Host Matrix Unit: Central host unit for the EclerPLEX ecosystem, providing flexible audio routing, processing, control and system expansion.
Eight Analogue MIC/LINE Inputs: Eight analogue microphone/line inputs with selectable +48 V phantom power on each port.
Eight Analogue LINE Outputs: Eight analogue line-level audio outputs for connection to amplifiers and other audio equipment.
Dante®/AES67 Digital Audio: Eight digital audio input ports and eight output ports, supporting four Dante®/AES67 flows in each direction.
Description.
Retail // Corporate // Sports & Wellness // Hospitality
The Ecler VIVO-X8D8 is a flexible EclerPLEX Host matrix designed for professional commercial audio and AV installations requiring advanced audio routing, network connectivity and centralised system control. It features eight analogue and eight Dante®/AES67 digital audio inputs, alongside eight analogue and eight Dante®/AES67 digital audio outputs, providing versatile connectivity for a wide range of audio sources and destinations.
Designed to scale with the needs of an installation, the VIVO-X8D8 includes two X-link ports, each capable of connecting a BIO-X8 or BIO-X8G expansion unit to increase system capacity. This makes it well suited to multi-zone audio distribution and more complex commercial sound systems in venues such as hotels, conference facilities, offices, education environments and hospitality spaces.
Operating as the Host unit in an EclerPLEX system, the VIVO-X8D8 can run multiple projects simultaneously and act as a server for User Control Panels (UCPs), allowing end users to access the controls they need. By combining analogue and Dante®/AES67 connectivity with scalable expansion and integrated control capabilities, the Ecler VIVO-X8D8 digital audio matrix provides a versatile foundation for sophisticated commercial AV installations.
