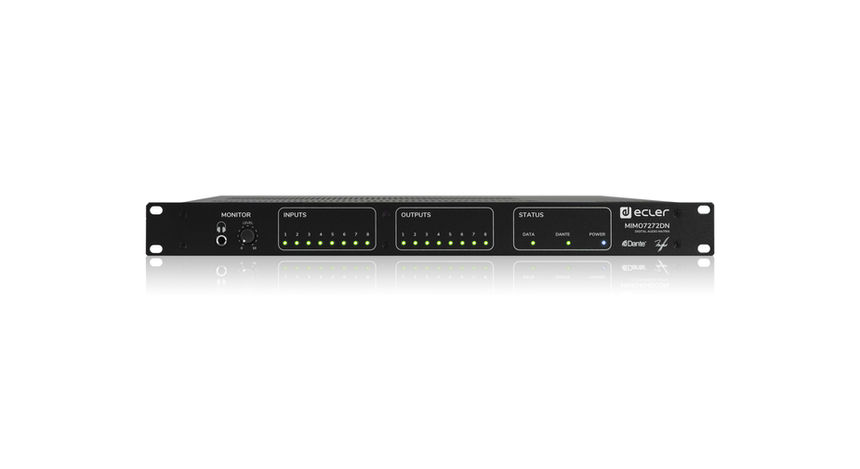

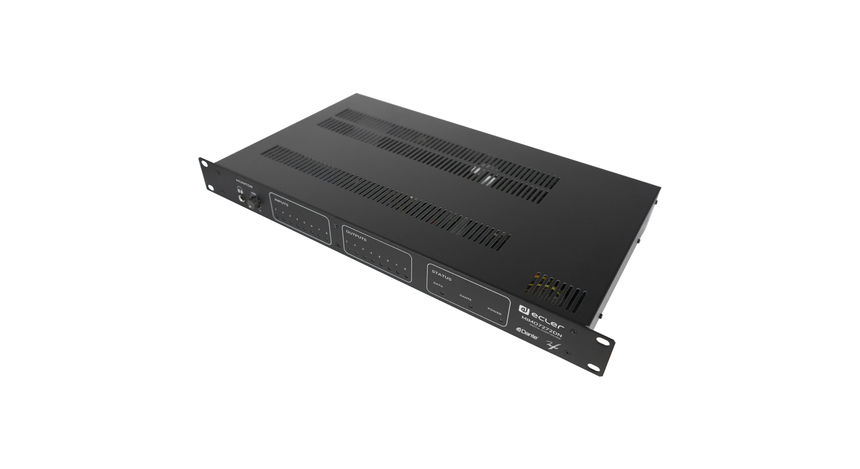

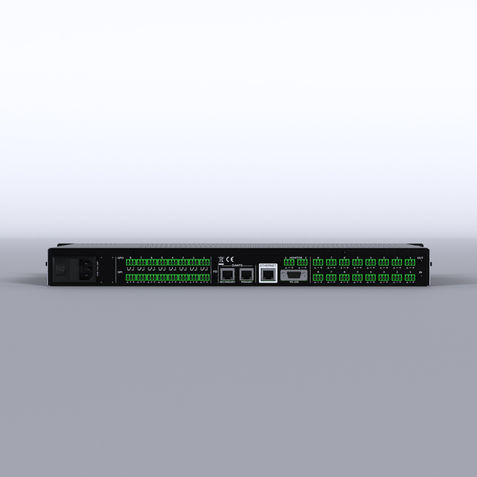

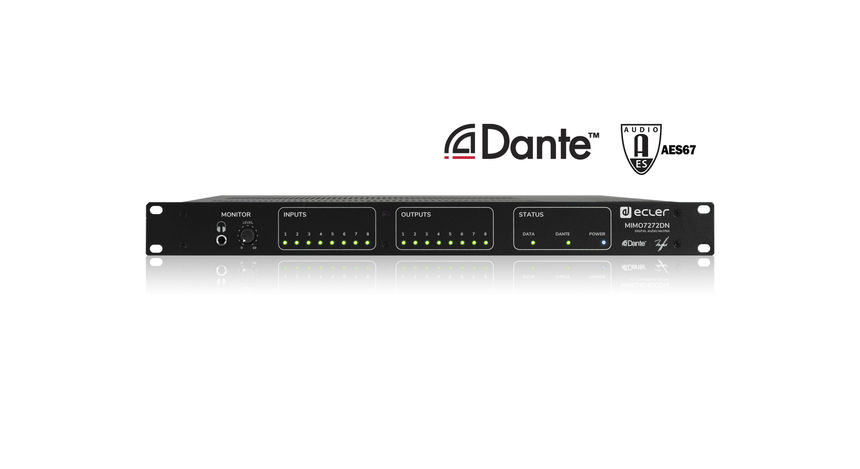

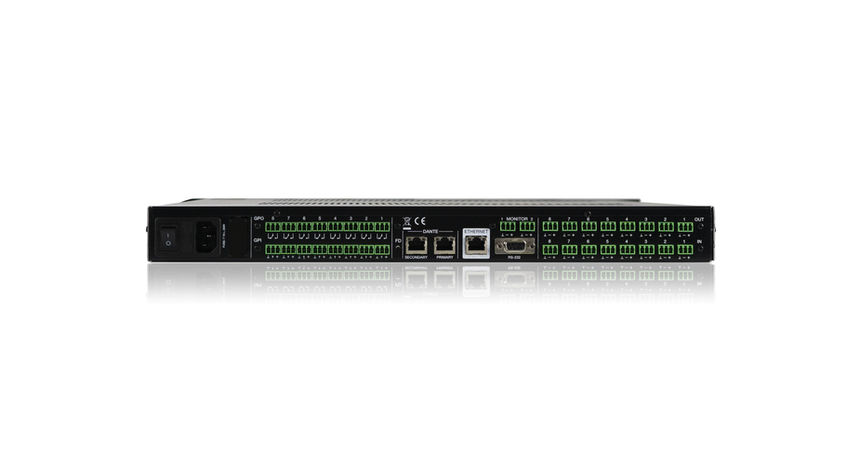

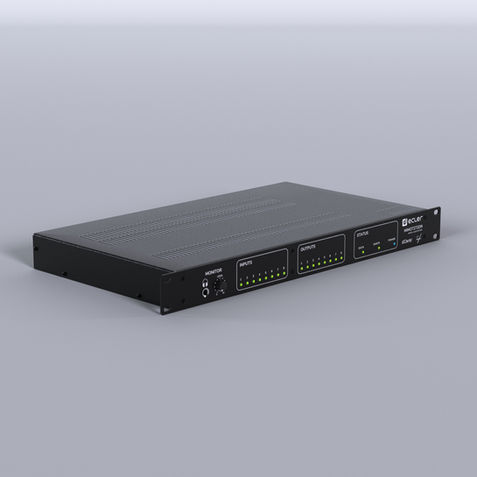

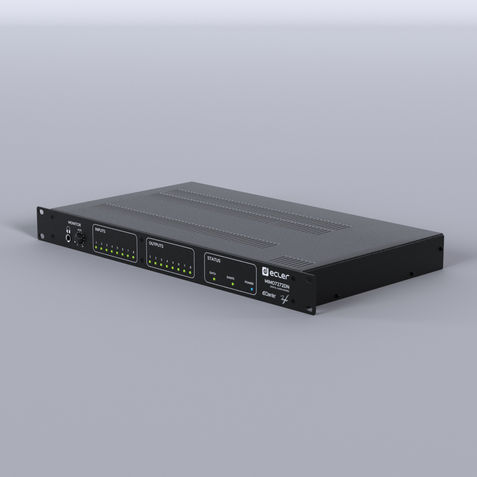

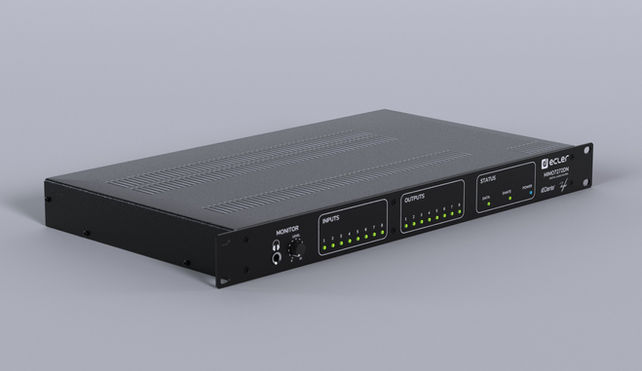

Ecler MIMO7272DN

72x72 | digital matrix | Dante™ | AES67

Key Features.

  • STANDARD firmware only (no CONFERENCE firmware available)

  • 72x72 audio input / output ports available

  • 64 input channels x 64 output channels digital audio native matrix

  • 8 MIC / LINE analogue audio inputs

  • 8 LINE analogue audio outputs

  • 64 Dante ™/AES67 digital input channels

  • 64 Dante ™/AES67 digital output channels

  • 8 GPI ports

  • 8 GPO ports

  • 2 Dante™ interfaces (primary and secondary), available for configuration of redundant Dante ™ networks

  • 1 Ethernet programming and control interface (EclerNet, UCP, TP-NET and WPNET series control panels)

  • 1 serial control port, RS-232 (TP-NET)

  • Embedded project manager and server of the project’s integrated UCP panels

  • Connection of all peripherals directly via EtherNet network, and without local wiring (remote controls WPNET series, PAGENETDN paging station, WP22DN wall panel Dante™/AES67 interface, etc.)

Retail // Education // Corporate // Sports & Wellness // Hospitality

Description.

MIMO7272DN is a digital matrix including 72 audio inputs and 72 audio outputs (8 analogue inputs, 8 analogue outputs, 64 Dante™/AES67 digital inputs and 64 Dante™/AES67 digital outputs), and a native internal matrix of 64x64 simultaneous input / output channels. Incorporating audio over IP technology, MIMO7272DN allows signal transmission using a Local Ethernet network, suppressing cabling distance limitations. It features accessories from WPNET Series connected by Ethernet interface and PoE DC supply ready. This ensures flexible and efficient installations. MIMO7272DN is also capable of executing EclerNet projects embedded into its processor and electronics engine, acting as a UCP (User Control Panels) server within an EclerNet devices network.
