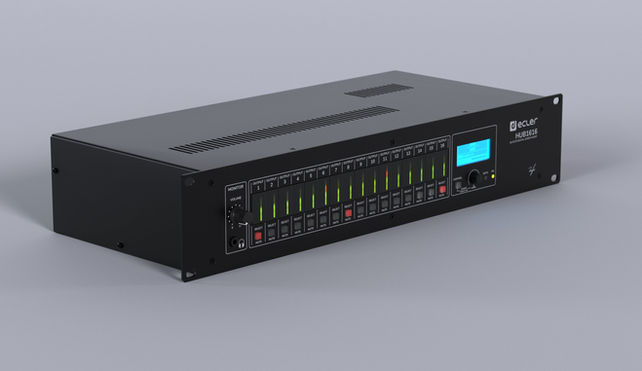

Ecler HUB1616
MSRP.
£1474.68 + VAT
Trade price.
Manufacturer Code.
CHUB1616
Key Features.
16-Input, 16-Output Digital Zoner with Integrated DSP: Professional digital zoner with built-in digital signal processing (DSP), designed for flexible audio distribution and control across multiple zones in commercial sound systems.
Web-Based Programming and Control: Configure and manage the zoner using the embedded web application, Ecler HANGAR software or a standard web browser.
Flexible Control and Third-Party Integration: Operate the zoner from its front panel or remotely using up to eight Ecler eMCONTROL1 wall control panels, up to two Ecler eMPAGE paging consoles, or the Ecler Pilot app for Android and iOS. Customisable Pilot control panels can be tailored to user requirements, while the TP-NET protocol via the RS-232 DB9 interface supports integration with third-party control systems.
Independent Zone Control: Select the audio source for each output zone and adjust volume, mute and three-band tone settings, with overall volume control also available.
Description.
The Ecler HUB1616 digital audio zone manager is a professional multi-zone audio processor designed for commercial sound installations that require flexible audio routing, zone management and centralised control. With 16 audio inputs and 16 outputs, it provides extensive connectivity for distributing and managing multiple audio sources across different areas of a building. As the successor to the eMIMO1616, the HUB1616 is well suited to commercial AV systems in hospitality venues, retail spaces, offices, education facilities and other multi-zone environments.
The integrated HANGAR web application makes system configuration and audio management straightforward through a standard web browser on Windows, macOS and other compatible devices. For convenient day-to-day operation, the HUB1616 supports remote control through physical wall control panels, paging stations and mobile apps for Android and iOS. This gives installers and system integrators flexible options for managing background music, paging and audio distribution across multiple zones.
Built-in digital signal processing (DSP) provides dedicated functions for both inputs and outputs, helping installers configure audio performance to suit each zone and application. With intuitive setup and a Plug and Play approach, the Ecler HUB1616 simplifies the installation of professional commercial audio systems while providing the flexibility needed for more complex sound distribution projects. It’s an ideal digital zone manager for venues requiring reliable audio control, flexible source routing and centralised management across multiple areas.
Applications.
Retail // Education // Corporate // Sports & Wellness // Hospitality
For larger installations where audio needs to be managed across multiple areas, the Ecler HUB1616 offers plenty of flexibility without making the system unnecessarily complicated. With 16 inputs and 16 outputs, it gives installers the freedom to route audio where it’s needed, while the built-in DSP provides useful tools for fine-tuning the sound in each zone. We also like the straightforward setup through the HANGAR web interface and the option for remote control via the Ecler pilot app, wall panels and paging stations. It’s a capable, practical solution for hotels, education, retail and commercial venues that need reliable, centralised audio control.
