Ecler HUB1408
Key Features.
14-Input, 8-Output Digital Zoner with DSP: Professional digital zoner with integrated digital signal processing (DSP) for flexible audio distribution across multiple zones in commercial sound systems.
Simple Programming and Web-Based Control: Configure and manage the zoner using the embedded web application, HANGAR software or a standard web browser.
Flexible Remote Control and System Integration: Control the zoner from the front panel or remotely using up to eight eMCONTROL1 wall panels, up to two eMPAGE paging consoles, or the Ecler Pilot app for Android and iOS. Customisable Pilot control panels can be tailored to user requirements, while the TP-NET protocol via the RS-232 DB9 interface supports integration with third-party control systems.
Independent Zone Control: Manage each output zone with audio source selection, volume adjustment, mute and three-band tone control, alongside overall volume management.
Description.
Retail // Education // Corporate // Sports & Wellness // Hospitality

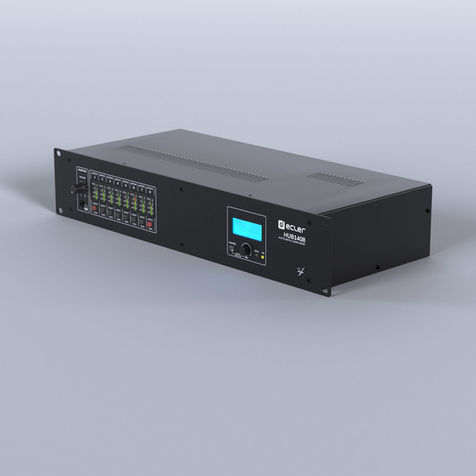

The Ecler HUB1408 is a versatile digital audio zone manager with 14 inputs and 8 outputs, designed to simplify audio routing and control across multiple zones in commercial sound installations. It combines flexible signal management with built-in DSP, making it well suited to venues that need different audio sources distributed and controlled across multiple areas.
Configuration is straightforward using the integrated HANGAR web application, accessible through a standard web browser on Windows, macOS and other compatible devices. The HUB1408 also supports remote control via physical wall panels, paging stations and mobile applications for Android and iOS, giving installers and users flexible control over the system.
With dedicated DSP functions for both inputs and outputs, the HUB1408 provides the tools needed to tailor audio performance to the requirements of each installation. Its intuitive setup and Plug and Play approach help make configuring a professional multi-zone audio system quick and straightforward, whether for background music, paging or more complex commercial audio applications.
