Ecler DAM614
Key Features.
24-Bit / 48 kHz Digital Signal Processing: High-quality DSP operating at 24-bit / 48 kHz for reliable audio processing in professional commercial sound systems.

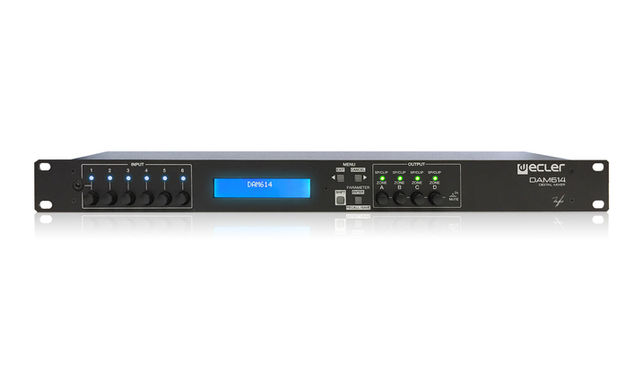

Front-Panel LCD Display: Clear LCD display for viewing settings and navigating system menus.
Dedicated Input Controls: Six front-panel digital control knobs provide direct adjustment of input levels.
Dedicated Output Controls: Four front-panel digital control knobs allow convenient adjustment of output levels.
Description.
Retail // Education // Corporate // Hospitality
The Ecler DAM614 digital audio mixer is a fully programmable audio processor designed for professional commercial sound installations requiring flexible audio routing, zone control and signal processing. With 6 audio inputs and 4 audio outputs, it provides a versatile solution for managing multiple audio sources across different areas in venues such as hotels, restaurants, bars, retail spaces and offices.
The DAM614 features two stereo line inputs, alongside four configurable mic/line inputs with phantom power available for compatible microphones. Inputs can be used independently in mono or coupled for stereo operation, giving installers flexibility when connecting microphones, music players and other audio sources. Its four outputs can be configured as independent mono zones or paired into stereo zones, making it suitable for a range of background music, paging and multi-zone audio applications.

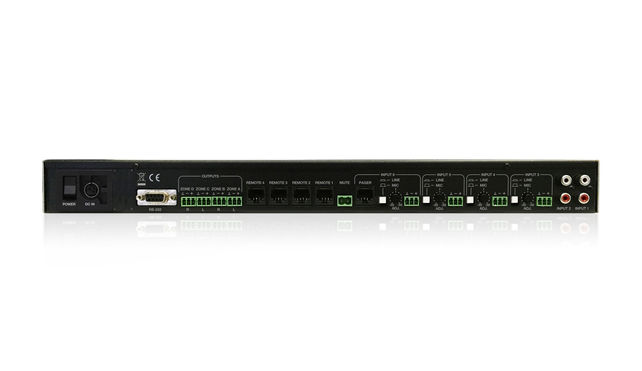

Built-in DSP processing and front-panel input and output level controls provide practical tools for setting up and managing audio performance. RS-232 connectivity supports integration with external control systems, while four 0–10V DC remote control ports allow compatible external controls to be connected. Combining programmable audio mixing, flexible input configuration and versatile output routing, the Ecler DAM614 is a practical choice for professional AV installers looking for a compact digital mixer for commercial audio and multi-zone sound systems.
