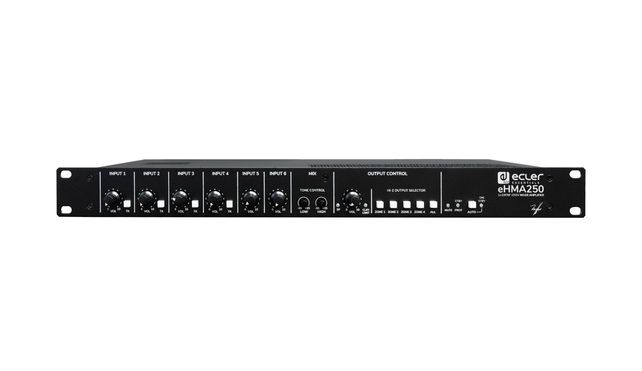

Ecler eHMA250
250 WRMS | powered | audio mixer
Key Features.
1 x 250W @ 4Ω / 8Ω / 50V / 70V / 100V (Load selector)
4 x ZONE ON/OFF selection switches
2 MIC inputs, including Talkover function (priority)
2 MIC / LINE inputs, including Talkover function (priority)
2 ST LINE input
Embedded Chime tone, via dry contact closure
2-band EQ (BASS/TREBLE) for Mix Output
Remote port for volume control (WPa series compatible)
Auto Stand-by function
Remote control port (compatible with WPa series wall panels)
15VDC Phantom Power (external switch)
MUTE port to remotely mute the unit from an external device, via dry contact closure
Retail // Leisure // Hospitality
Description.
eHMA250 is a self-powered audio mixer including 2 MIC inputs, 2 MIC/LINE ST inputs, 2 LINE ST inputs and one AUX/REC output. Supports both low (4 and 8Ω) and high impedance (50, 70 and 100V) loudspeaker lines, with independent 4-ZONE ON/OFF switches (ZONE 1, ZONE 2, ZONE 3 and ZONE 4), besides a low impedance output and an auxiliary output. It also includes an audio priority system (voice messages, emergencies, etc.) available in 4 inputs and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and Remote port (RJ45) for remote volume control, compatible with Ecler WPaVOL.
