Description.
List price.
£419.34 + VAT

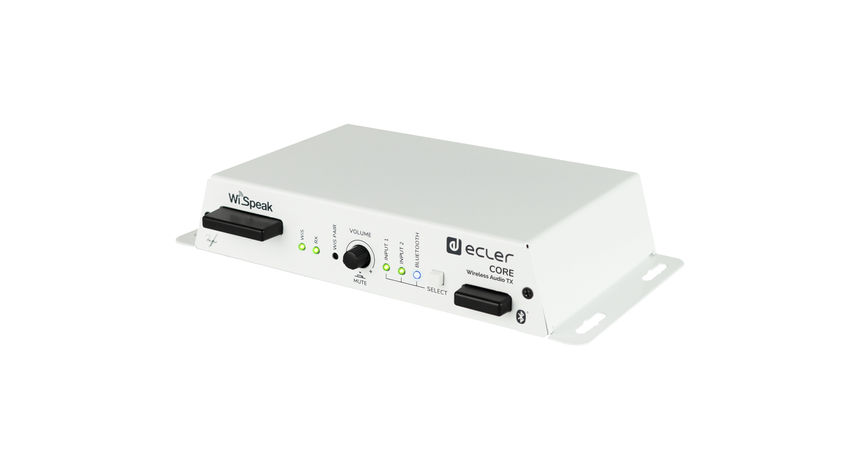

WiSpeak CORE is the transmitter device that communicates with all the receiver devices to create a WiSpeak wireless network, and takes the role of the Master Unit. Its main functions are to pair and send audio contents to all the receivers (TUBE, CUBE), keeping a stable communication with them, and send also individual configuration commands to each receiver if desired. It also takes care of the global configuration of the system: audio inputs in use, equalization, output levels, etc. CORE is the Master Unit of the Ecler WiSpeak system. Together with TUBE, CUBE and GLOBE, provides a simple and fast wireless installation with up to 500m2 coverage. It includes a WiSpeak grip app available for Android and iOS, which can be used for an advanced set up and fine tuning of the Wireless Pro Audio system.
Key Features.
Retail // Education // Corporate // Sports & Wellness // Hospitality
External, universal Power Supply (100-240VAC 50-60Hz)
Compatible with WiSpeak grip app for set up and control functions (available for Android and iOS), using Bluetooth® connection
3 audio inputs available:
o Analogue stereo, unbalanced. 2 x RCA connectors
o Analogue stereo, balanced. 2 x Euroblock 3p connectors
o Bluetooth®, class 1 (up to 25 meters range, maximum)
1 x WiSpeak wireless audio signal transmitted (a mono conversion of the selected input)
1 x AUX OUT analogue signal available (a copy of the transmitted WiSpeak signal). It can be used for linking the unit to external audio devices, like amplifiers, mixers or subwoofer units
MUTE port, to allow the system’s audio silencing when an external dry contact is closed
REMOTE port, to allow a simple general volume control for the end user -within a programmable range- using a WPaVOL or compatible wall panel
Maximum number of receivers under control per transmitter device = 24 units. The system can be extended by linking a new transmitter to an existing receiver, creating a second WiSpeak network that shares the audio contents and Master volume with the first (main) one

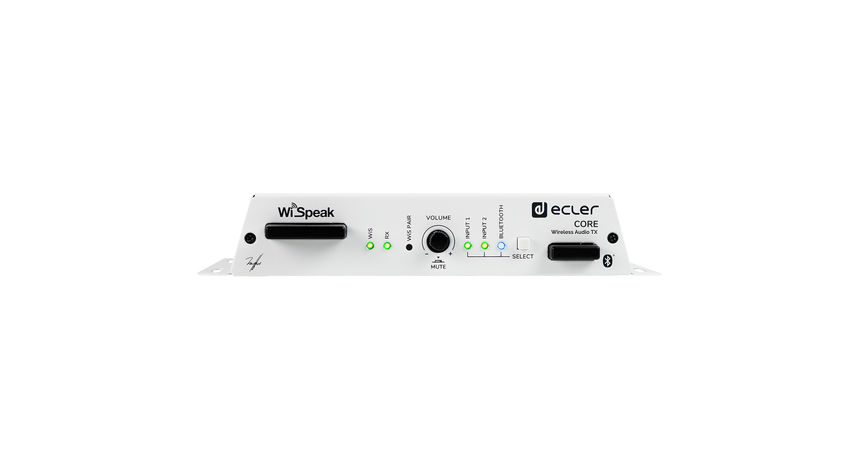

Front panel controls for source (input) selection and general (Master) volume control
Recommended maximum range from a CORE transmitter to any WiSpeak paired receiver (TUBE CUBE or GLOBE): 12 meters, with direct line of sight
Front panel PAIR key: it allows pairing the receivers to the transmitter quickly and easily, for a basic set up of the WiSpeak system
Front panel LED indicators
Service USB-C port (not for external power supply, only for service updates & firmware)
